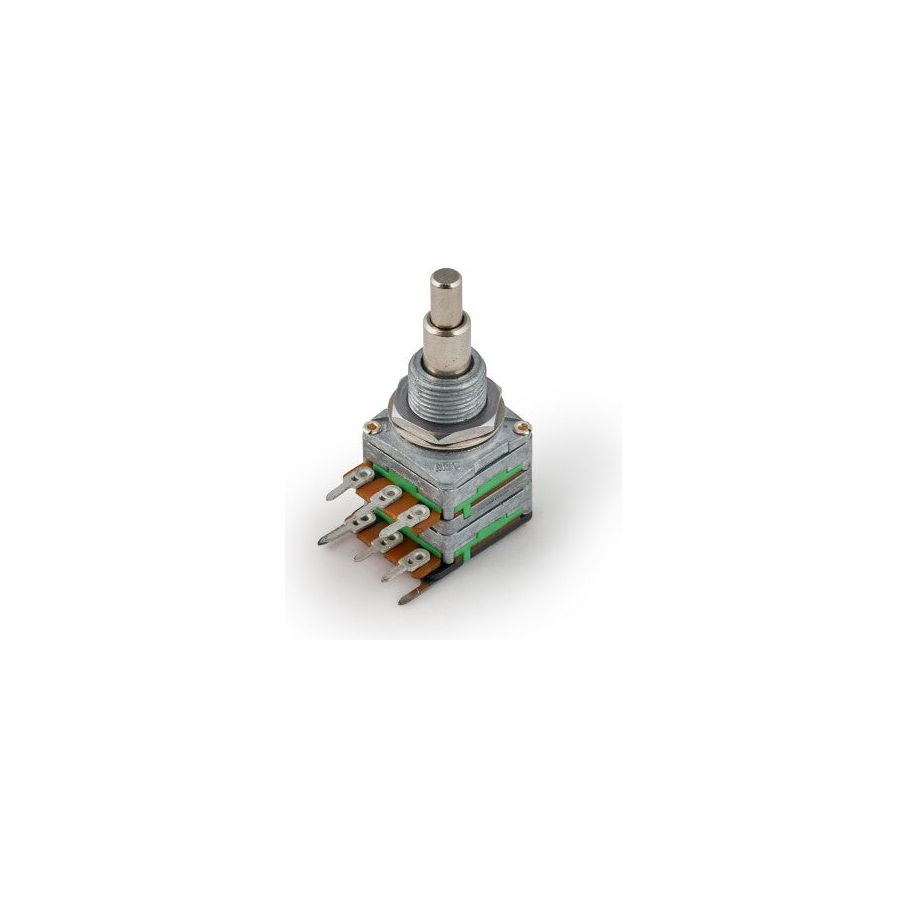

B100K
- Dual mono stacked potentiometer
- Concentric shaft
- R1 = B100K (resistance 100 kOhm, (B) linear)
- R2 = B100K (resistance 100 kOhm (B) linear)
- Center detent
- Suitable for use as bass + treble control for active electronics
- M10 x 0.75 mm threads
- Mounting diameter 10 mm
- Thread length 9 mm
- Solid shaft
- Shaft length 14 mm (inner), 7 mm (outer)
- Shaft diameter 4 mm (inner), 6 mm (outer)
- Incl. nut and washer
- Dimensions incl. lugs (L x W x H) 24 x 16 x 17 mm
B50K/cc/B50K/cc
- Dual mono stacked potentiometer
- Concentric shaft
- R1 = B50K (resistance 50 kOhm, (B) linear)
- R2 = B50K (resistance 50 kOhm, (B) linear)
- Center detent
- Suitable for use as bass + treble control for active electronics
- M10 x 0.75 mm threads
- Mounting diameter 10 mm
- Thread length 9 mm
- Solid shaft
- Shaft length 14 mm (inner), 7 mm (outer)
- Shaft diameter 4 mm (inner), 6 mm (outer)
- Incl. nut and washer
- Dimensions incl. lugs (L x W x H) 24 x 16 x 17 mm
B10K/B250K Push/Pull
- Dual mono stacked potentiometer with push/pull switch
- Concentric shaft
- R1 B10K (resistance 10 kOhm, (B) linear)
- R2 = B250K (resistance 250 kOhm, (B) linear)
- Center detent
- On/On DPDT
- Suitable for use as volume + volume or tone + tone control for active pickups
- M10 x 0.75 mm threads
- Mounting diameter 10 mm
- Thread length 9 mm
- Solid shaft
- Shaft length 14 mm (inner), 7 mm (outer)
- Shaft diameter 4 mm (inner), 6 mm (outer)
- Incl. nut and washer
- Dimensions incl. lugs (L x W x H) 24 x 16 x 24 mm
